Product Overview:
The P & F Solar Reefer Drop Deck Trailer is a special model for high end client who need the trailer be able to keep cargo cold for several days even without generator or city power, with easy way to get in and out of the reefer box with heavy cargo. Top option of temporary storage needs, offering reliable temperature control and flexibility. The reefer box also can be removed and located separately without the trailer chassis.
Key Features:
- Efficient Refrigeration: Maintains stable temperatures for safe storage of perishables.
- Green Tech: With battery system and solar panels, it will allows the unit operate for days without any third party power supply.
- Drop Deck Chassis: Be able to drop the chassis down to the ground or separate the box with the trailer, easier for get in and out
- Insulated Design: Ensures energy efficiency and consistent temperature control.
Ideal For:
- Temporary warehousing during peak seasons
- On-site storage for events or construction sites
- Emergency backup storage for food and pharmaceuticals
Optimize your temporary storage with the P & F Reefer Trailer — your dependable choice for secure and effective refrigerated storage.
Condenser Specification
Output Power: 1350W~2400W
Frequency Range: 60-160HZ
COP: 1.26
Compressor type: Rotor Compressor
Compressor model: DBH250LDPB5M
Compressor desplacement(cc/r): 25.0ml/rev
Ludricating oil: POE68
Voltage: AC100V~260V

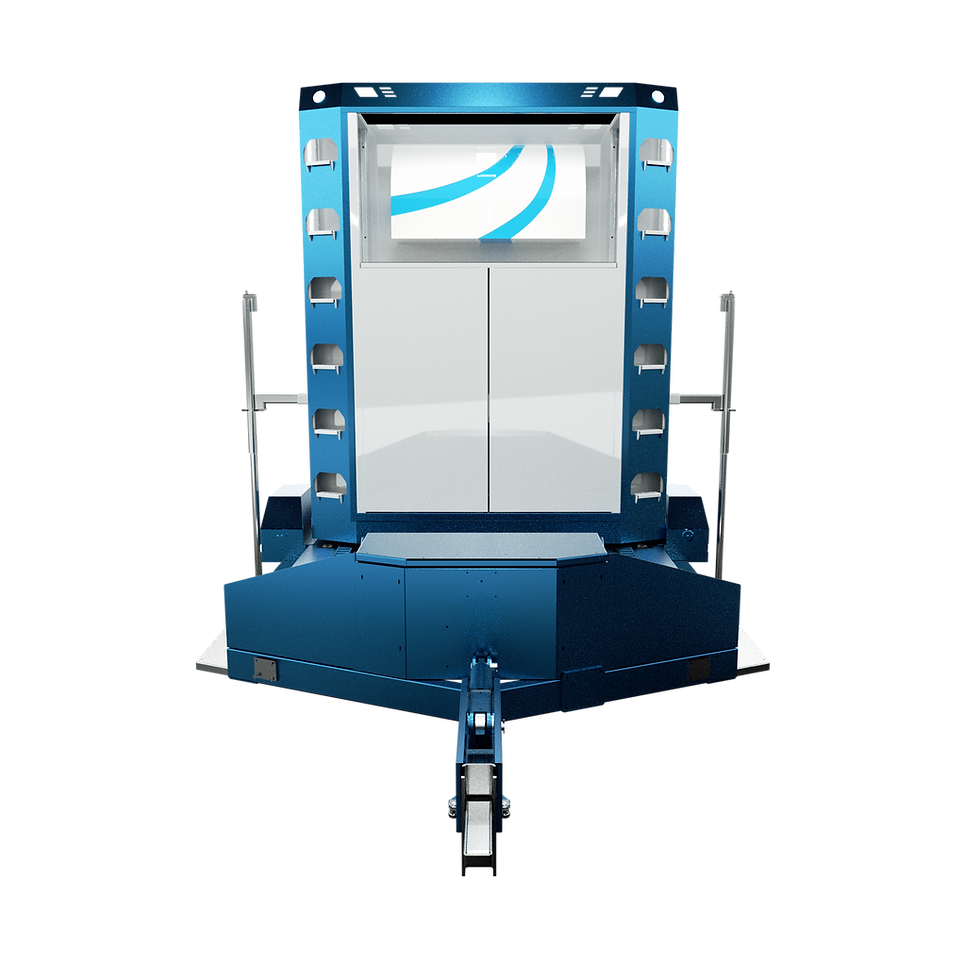

P&F HTSR20
Dimensions
Trailer Box Outer Dimension:
3700mm(L)x2020mm(W)x2220mm(H)
Trailer Box Inner Dimension:
3530mm(L)x1850mm(W)x2010mm(H)
Trailer Outer Dimension:
25.07ft(L) x 8.49ft(W) x 3.51ft(H)
About 7,645mm(L) x 2,589mm(W) x 1,072mm(H)
Trailer Deck Dimension:
20.17ft(L) x 83in(W) x 0.49ft(H)
About 6,149mm(L) x 2,021mm(W) x 150mm(H)
Weight Rating
GVWR: 3810Kgs (8270Lbs)
Self Weight: 1310Kgs (2755Lbs)
Loading Capacity: 2,500Kgs (5500Lbs)
Coupler
Coupler: 2-5/16" Adjustable
Tires
Size: ST225/75R15
Suspension
Axles: 2/Tandem
Material
Trailer Material: Q235 Steel Perforated Sheet
Deck Materail: Aluminum Checkered Plate
Condenser Specification
Power and Frequency:
Output Power: 1,350 W ~ 2,400 W
Frequency Range: 60-160 Hz
Performance and Compressor Details:
Coefficient of Performance (COP): 1.26
Compressor Type: Rotor Compressor
Compressor Model: DBH250LDPB5M
Displacement (cc/r): 25.0 ml/rev
Lubrication, Refrigerant, and Voltage:
Lubricating Oil: POE68
Refrigerant: R404a
Voltage Range: AC100V ~ 260V
